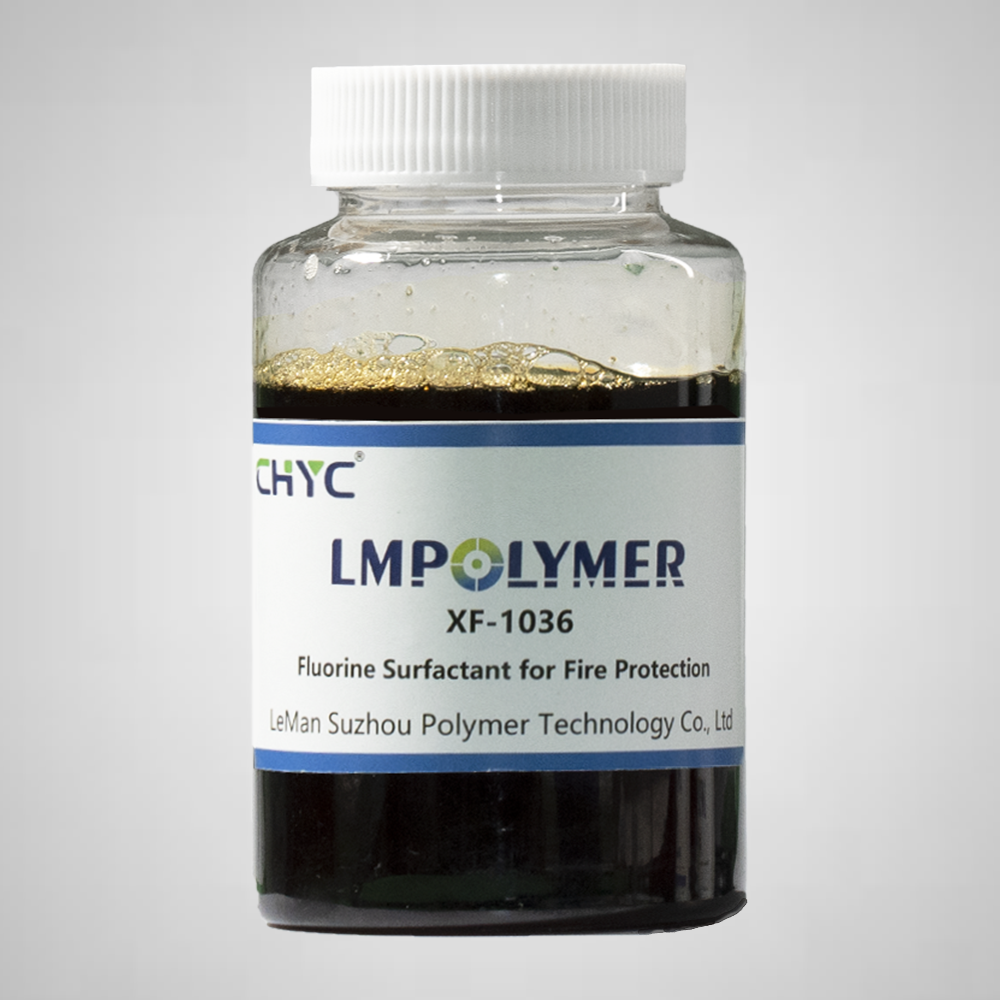

Fluorine Surfactant for Fire Protection XF-1036
Light water foam (AFFF) is a fire-fighting product used to extinguish oil (class B) fires. Due to its good environmental protection, convenient use and good fire-fighting performance, it has developed rapidly recently. Oil depots,chemical plants, airports, high-speed railways, etc. are equipped with light water foam products. Light water foam fire extinguishing includes water-based film, alcohol resistant water-based film, film-forming fluorine protein and other products.
For light water foam (AFFF), the core component is water-soluble fluorine surfactant, which can reduce the surface tension of water from 70 dyne / cm to less than 20 dyne / cm, so that water can spread quickly on the surface of oil products, and then isolate the air, so as to achieve the purpose of extinguishing the fire.
Instructions for users:The information published in this article is what we believe to be reliable. However, users must decide the suitability of the product by themselves. Our company cannot understand all the conditions and objects, so it cannot guarantee the correctness and usability of the product in a certain usage and use. You should make a thorough verification before using it, and then decide on the best use method by yourself. Our company only guarantees whether the products meet the specifications, and does not assume any responsibility for the marketing or usability of the products or the express and implied warranties. The only compensation of users and the only commitment of the company are limited to reasonable refund and replacement of products. Our company is not responsible for any losses caused by accidents, and the use suggestions we provide shall not be regarded as the cause of infringement of any patent rights.
The typical physical and chemical indexes of the product are as follows:
| Appearance |
dark red liquid
|
|
PH
|
6-8
|
|
Solid content
|
30%
|
|
Density(20℃)g/ml
|
1.3
|
|
Thermal stability
|
>175℃
|
Surface tension characteristics(25℃):
|
Concentration%
|
Surface tension(mN/m)
|
|
0.01
|
21.4
|
|
0.05
|
17.5
|
|
0.1
|
17.0
|
Foaming capacity(Ross miles method):
|
Amount of foam(ml)
|
|||
|
0.5% XF-1036
|
30s
|
3m
|
5m
|
|
Deionized water
|
330
|
300 | 265 |
|
Common water
|
220
|
200 | 200 |
|
10%Nacl aqueous solution
|
105
|
95 | 95 |
Interfacial tension(25℃):
|
Solvent gasoline
F-5
|
Cyclohexane
|
Heptane
|
|
|
Water
|
45
|
41 | 47 |
|
Water+1g/L 1205
|
330
|
300 | 265 |
Fire extinguishing performance test: basic formula: 3% foam
|
Component
|
Proportioning 1%
|
Proportioning 2%
|
|
Cocoa acyl alkyl glycine salt
|
5 | 5 |
|
Fatty Alcohol Sulphates
|
10 | 10 |
|
XF-1036
|
5 | |
|
Comparison products
|
5 | |
|
Butyl carbitol
|
10 | 10 |
|
1,2-propanediol
|
10 | 10 |
|
Triton X-100
|
0.5 | 0.5 |
|
Water
|
||
|
Fire extinguishing time
|
5s | 5s |
|
Anti reignition
|
Excellent
|
well |
